Advanced use: Tokens and RLS

Token Usage

You can use or create tokens that attribute value to users.

Keep in mind we also provide default tokens (Year, Month, etc.)

To do so, when editing the users, you can add a custom claim (token), to use it later on a page/report filter or on RLS.

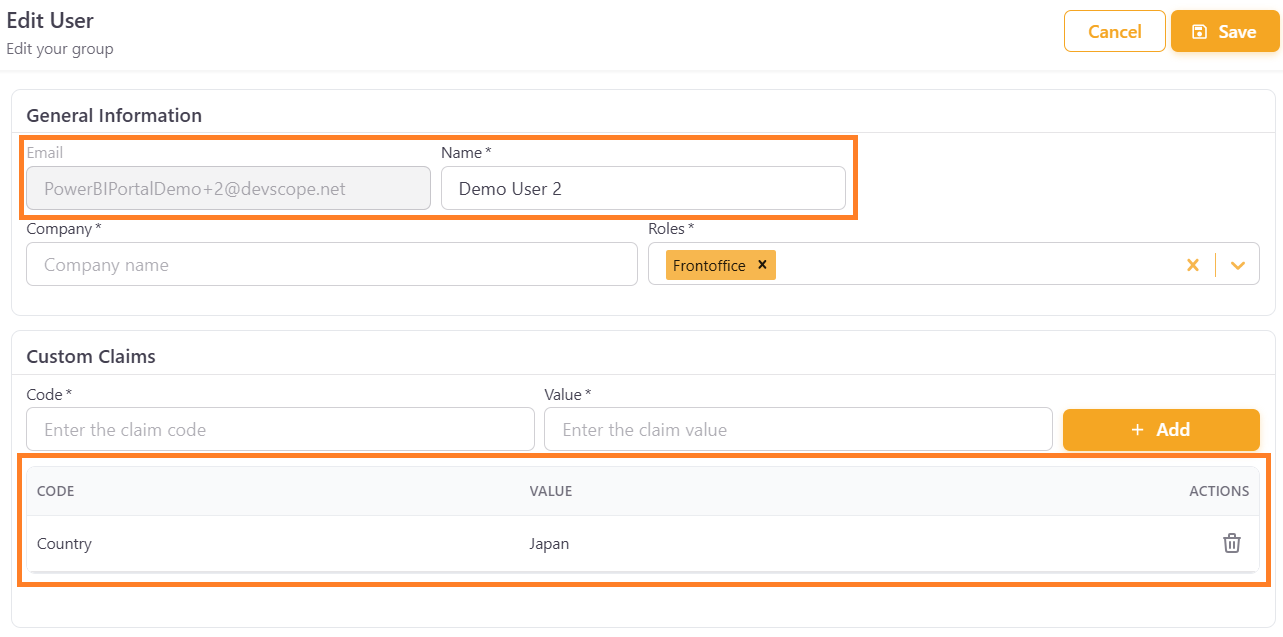

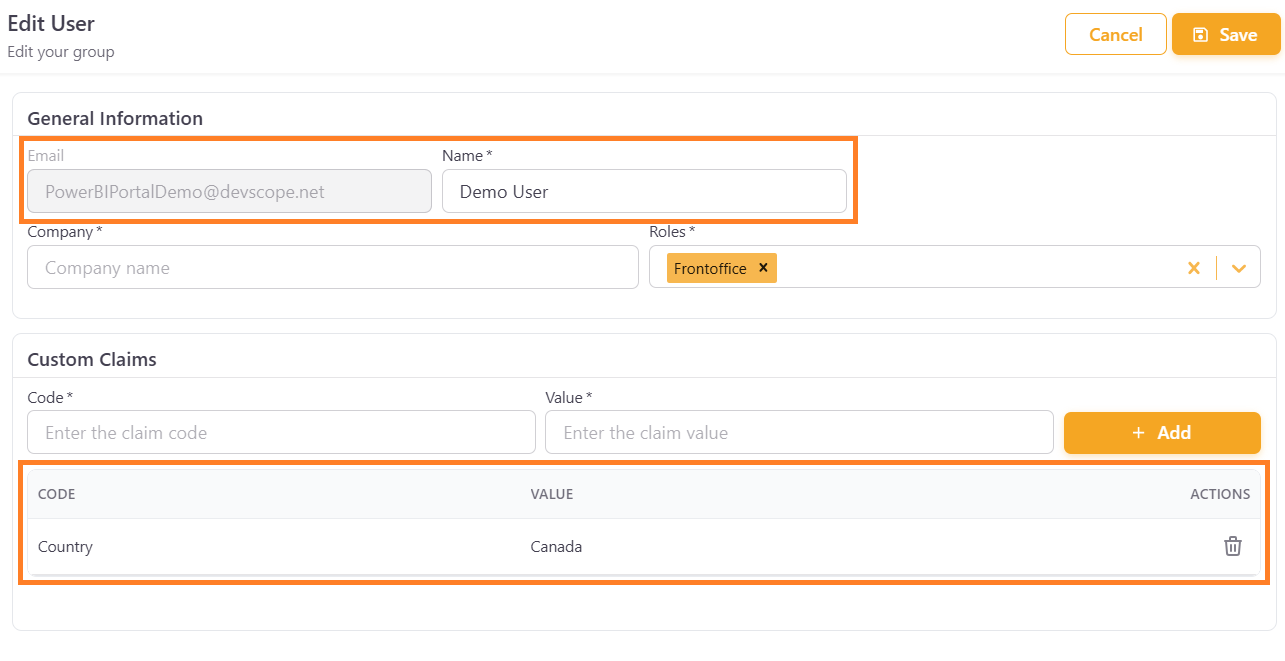

Example: We created a Custom claim for User1 named Country and with the value ‘Canada’, for User2 the same thing with the value ‘Japan’:

The Custom Claim can contain anything you'd want to use to filter or apply a value to each user.

To apply tokens filters on the page or whole report, you need to apply them on the provided textboxes.

One quick way to get them is on the ‘Edit report’ page, to click on the filter icon and one the report preview window select one value, then save and generate the code, and apply the token:

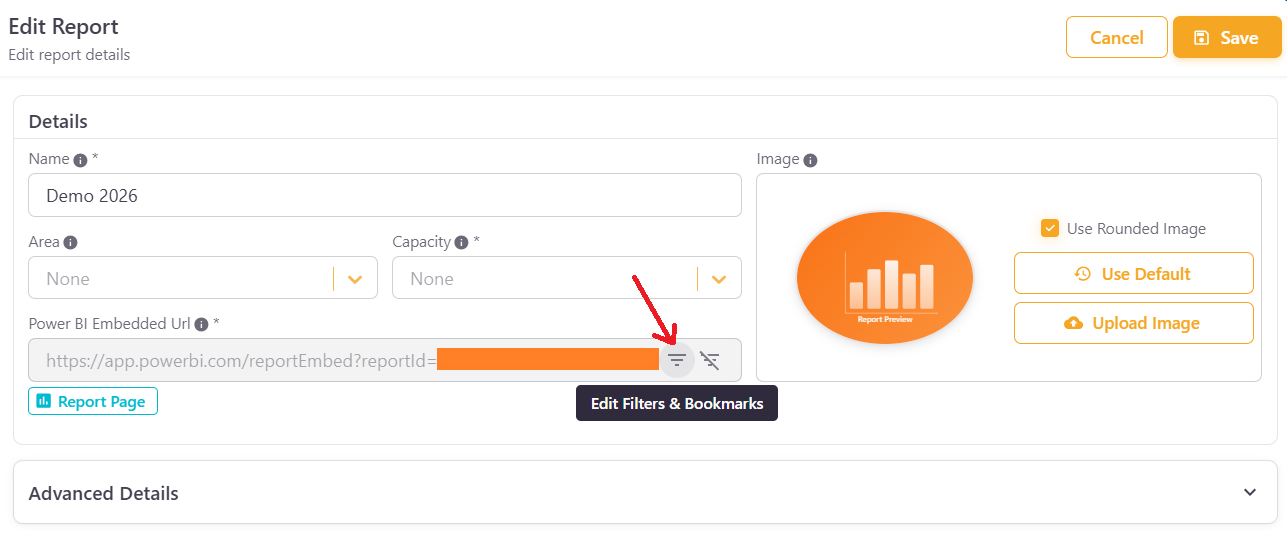

Edit Filters:

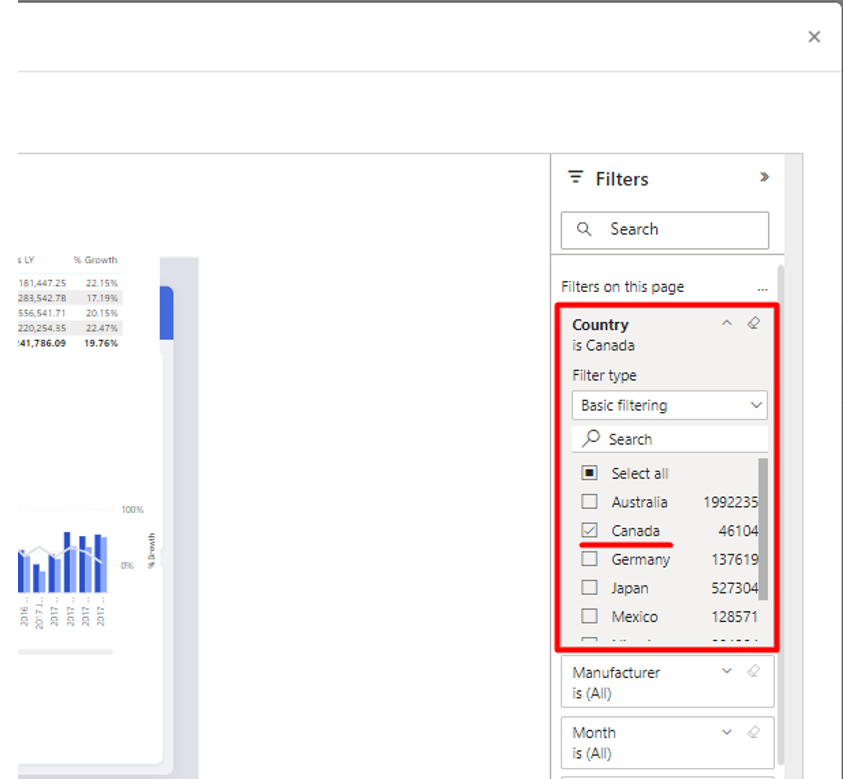

Select a value on the preview window:

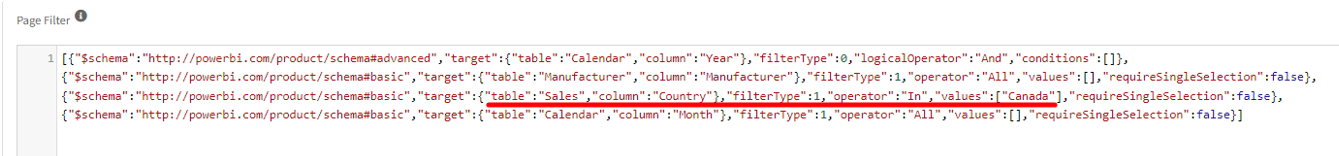

The generated code should look something like this:

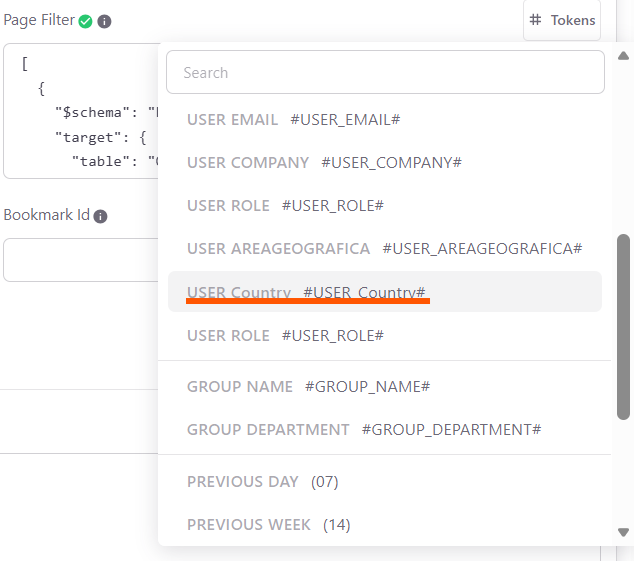

Now we need to replace the selected value with the token:

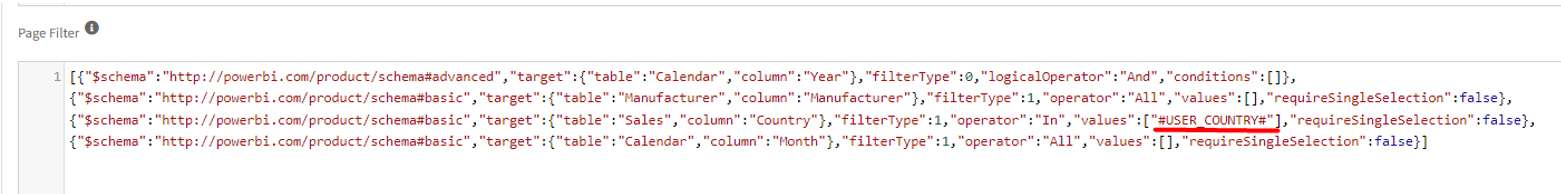

It should look something like this:

You need to save, and now each user will be filtered to the Country token value – User1 to Canada and User2 to Japan.

Row-Level Security

If already created, you can reapply the same logic to each user on the Advanced Settings of the Report:

There are two fields related to RLS, Row-Level Roles and Row-Level User.

Row-level Roles:

Static Roles:

If you have static Roles, meaning the filter value is always the same, you just need to fill in the Row-level Role value with the RLS Role to be associated with the user.

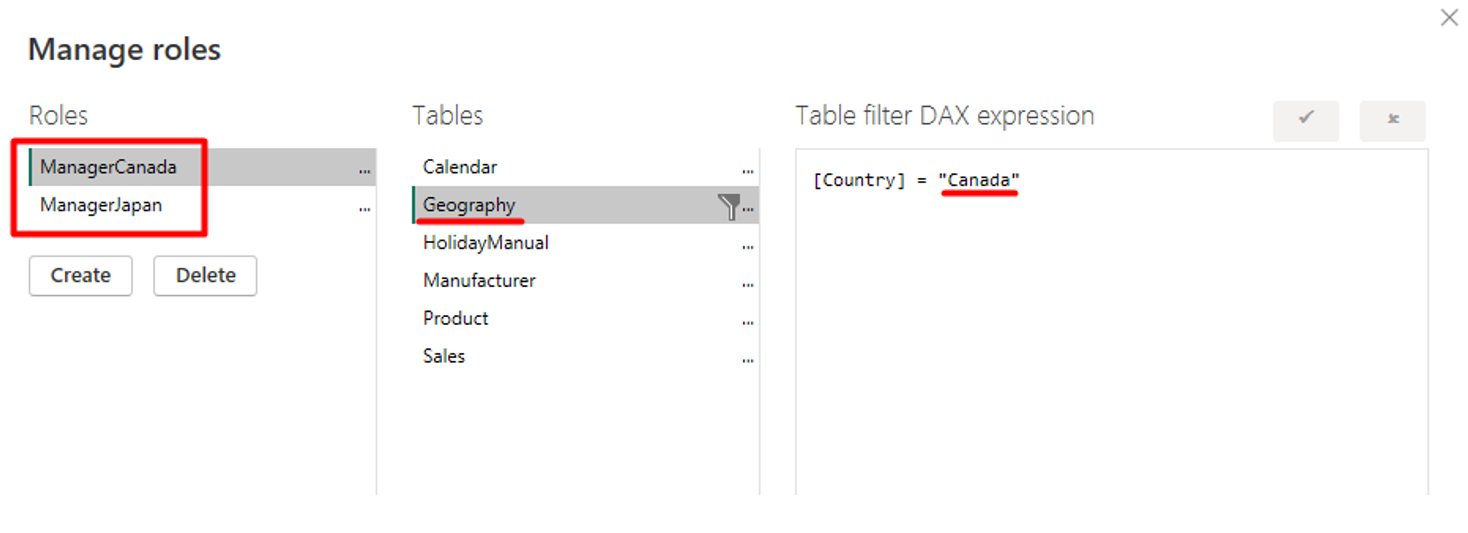

On Power BI Desktop we have the Roles ManagerCanada and ManagerJapan with static filters applied – Japan and Canada separately:

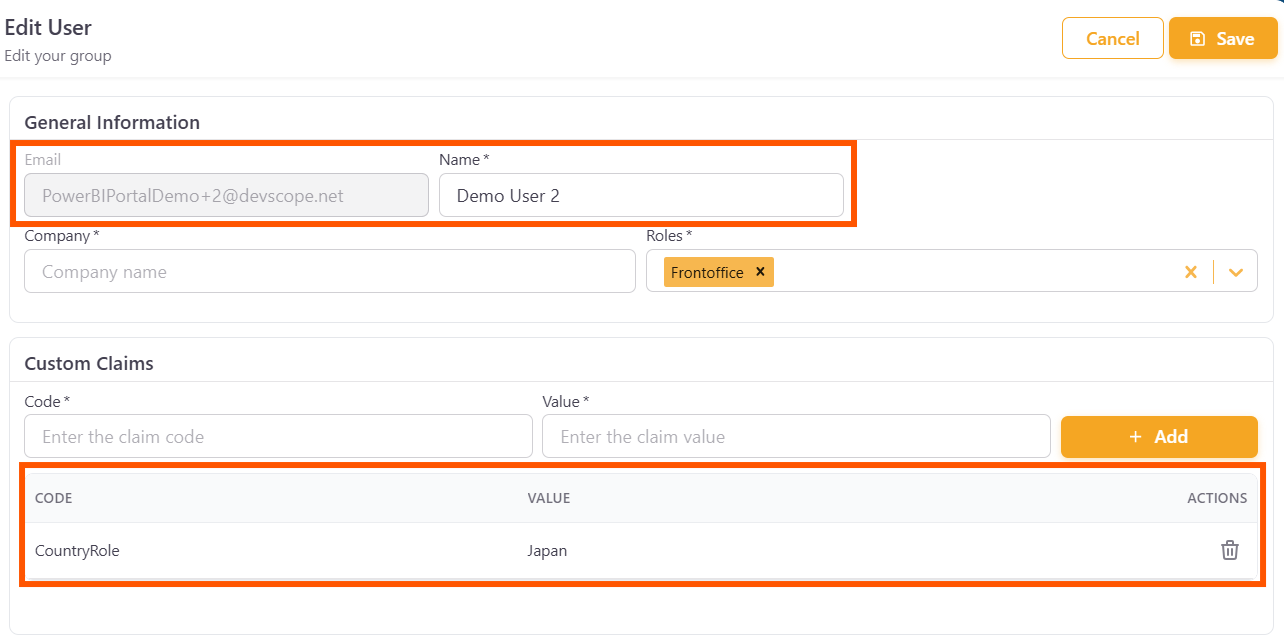

We edited the users and applied a new token named CountryRole – user1 has the value Canada, user2 Japan:

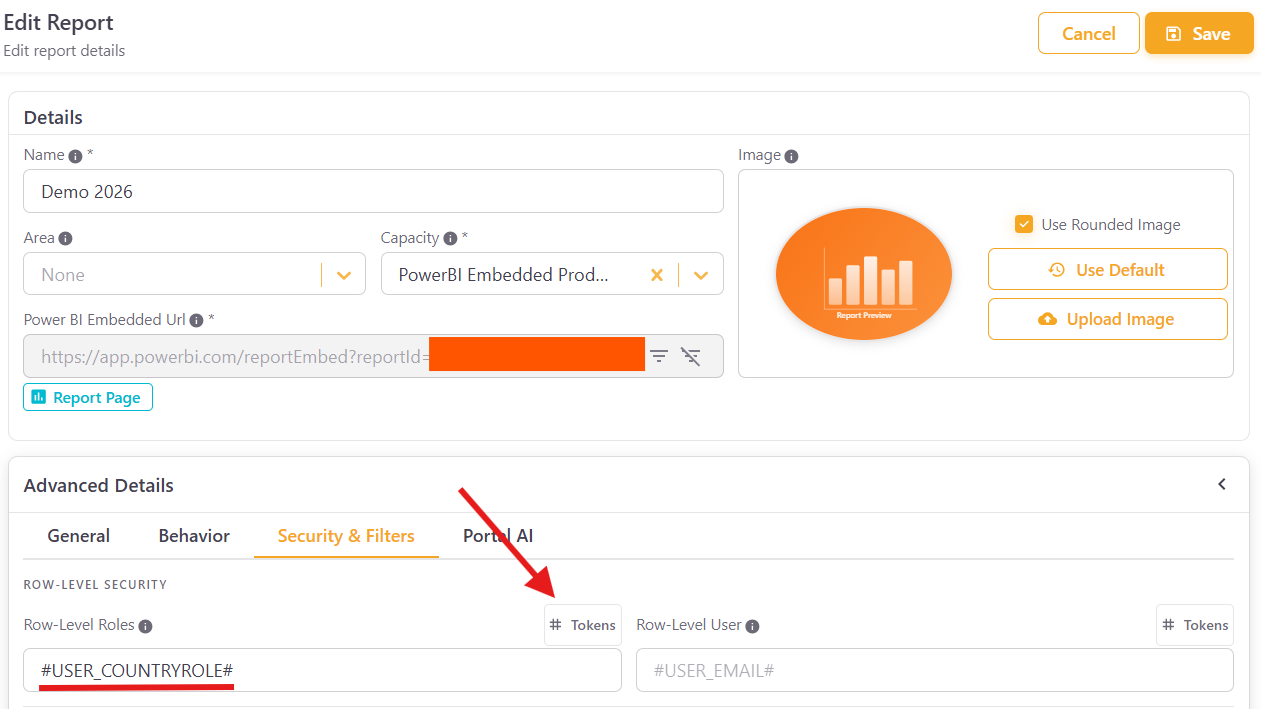

After saving, we edit the desired report and apply the token on the Row-Level Role:

Now each user when accessing the reports will be attributed with the configured role.

Dynamic Roles

If you have dynamic Roles, meaning the filter value within the Role can change, you just need to fill in the Row-level Role value with the RLS Role and the Row-Level User with the value for the user.

As before we can use tokens to do it.

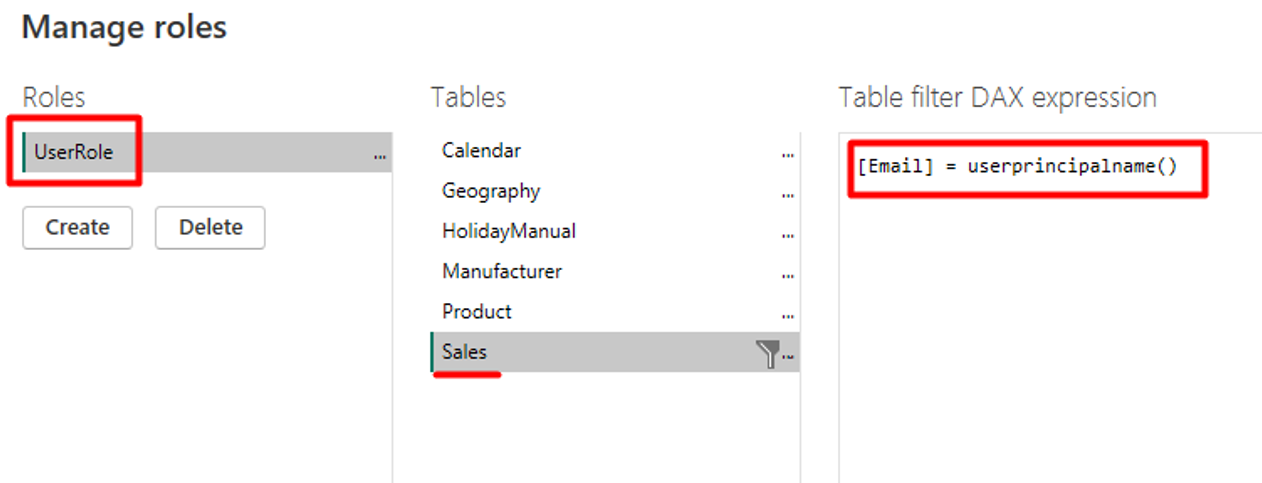

In this case, on PowerBI Desktop, we created a dynamic Role name ‘UserRole’ and it filters the Sales table with each viewers’ email:

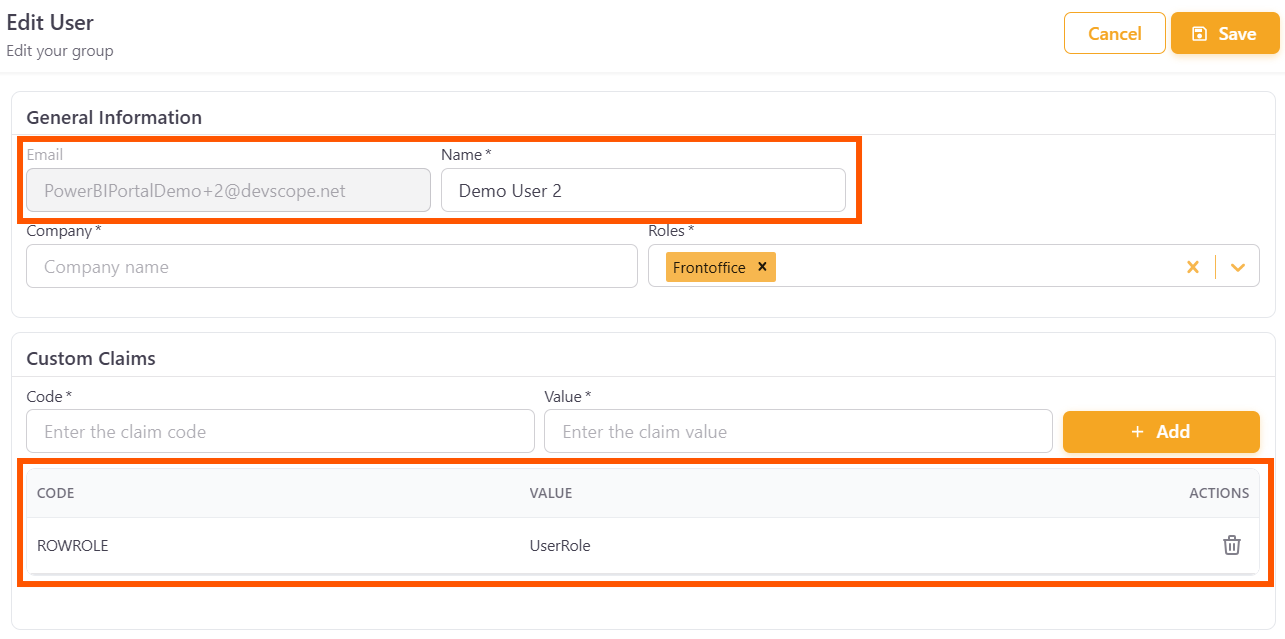

On PowerBI Portal we edit the user1 and user2 to have a Token named ‘RowRole’ and both have as value the dynamic Role created on Power BI Desktop named ‘UserRole’:

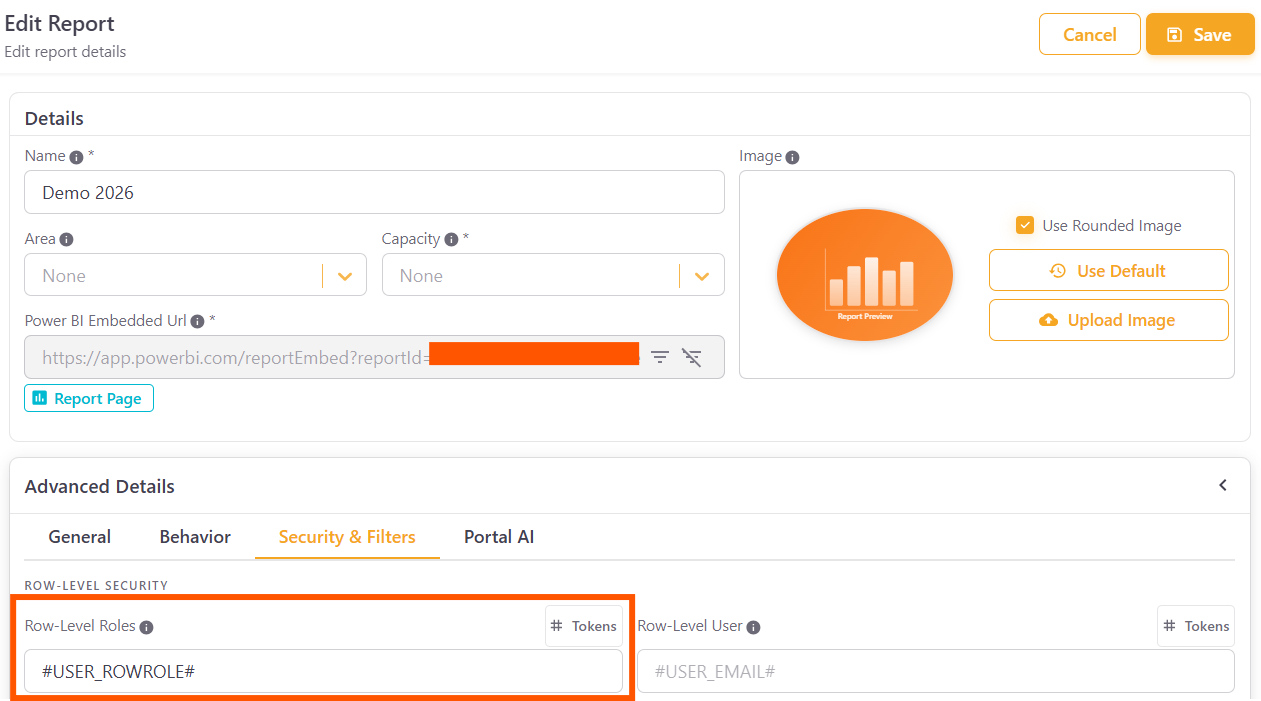

Now on the report we can add the token for the Row-Level Role and Row-Level User for this report.

Row-Level Role has the RowRole token, and the Row-Level User (since it requires the email value) has the email address token (created by default).

Applying these steps will allow you to replicate the dynamic RLS you have on your datasets.
